Why Use a Curvilinear Ultrasound Probe for Abdominal Scans?

Main points:



• Curvilinear probes provide deeper penetration, wider field of view, and better contact with curved abdominal surfaces.
• Mastering curvilinear scanning requires specific techniques for optimizing images and handling the probe properly.
• SimuGel™ training materials offer realistic practice opportunities to develop essential scanning skills.



Curvilinear ultrasound probes are the preferred choice for abdominal scanning because they provide greater depth penetration, a wider field of view, and better contact with the curved abdomen surface.



You position the probe on your patient’s abdomen and begin scanning. The image appears grainy and incomplete. You can’t capture deep structures clearly. The problem isn’t your technique. It’s your probe selection.



A 2024 clinical evaluation found that using a transducer designed for deep abdominal imaging improved B‑mode image quality by up to 53% and color Doppler performance by up to 73%, demonstrating how the right probe can significantly increase diagnostic clarity. For abdominal scanning, that choice is almost always curvilinear.



In this article, we’ll explain what makes curvilinear probes essential for abdominal imaging, how they differ from other probe types, and how to train effectively with them using realistic simulation.



What Is a Curvilinear Ultrasound Probe?

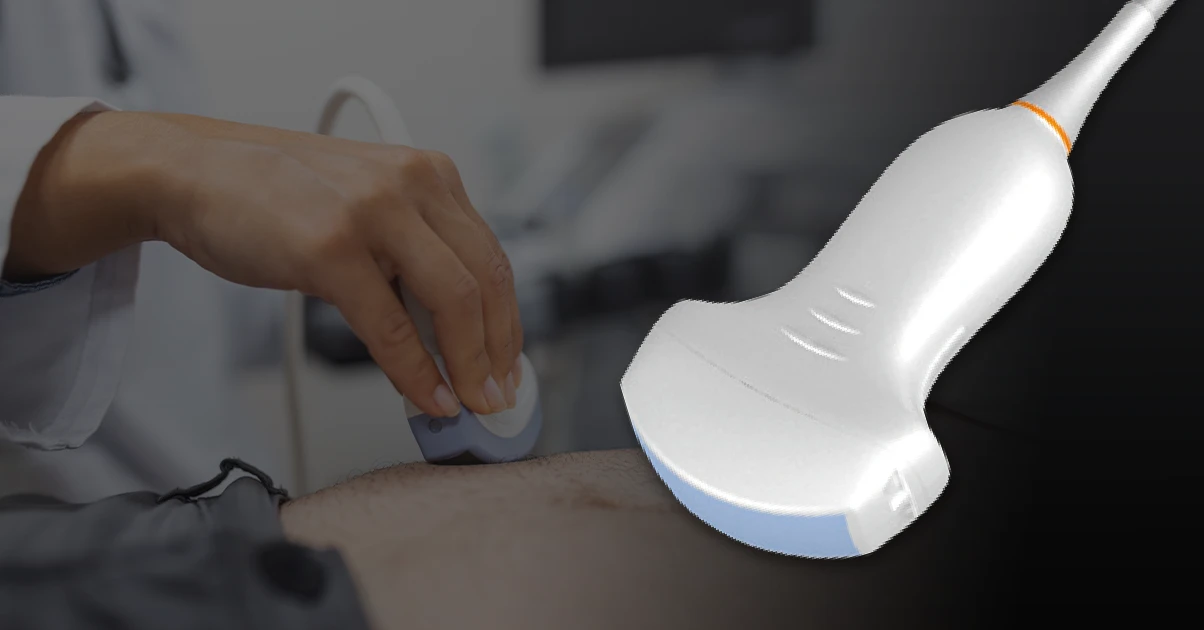

A curvilinear probe (sometimes called a convex or curved array probe) is an ultrasound transducer with a rounded, convex surface that emits sound waves in a fan-shaped pattern. This design is fundamentally different from linear probes, which have flat surfaces and produce rectangular images.



Curvilinear probes operate at lower frequencies (typically 2-5 MHz) than linear probes, which typically use 7-15 MHz. This lower frequency allows the sound waves to penetrate deeper into the body. This feature becomes essential when imaging abdominal organs that may be 10-15 cm beneath the skin surface.



Think of the difference like this:



• Linear probes are like flashlights. They illuminate a straight, narrow path with high detail but limited reach.
• Curvilinear probes are like floodlights. They illuminate a wide, fan-shaped area that reaches farther but with slightly less detail up close.



This trade-off between depth and resolution explains why curvilinear probes are the standard choice for abdominal imaging across major clinical guidelines, including FAST, aortic, biliary, renal, and pelvic exams.



Why Curvilinear Probes Excel at Abdominal Imaging

Three key advantages make curvilinear probes ideal for abdominal scanning:



1. They Reach the Deepest Structures



Abdominal organs aren’t superficial. The aorta, kidneys, and portions of the liver can be 8-15 cm from the skin surface. The lower frequency of curvilinear probes allows sound waves to penetrate this distance without losing too much signal strength.



When using a curvilinear probe:



• Sound waves can typically reach depths of 15-20 cm
• Return signals remain strong enough for image formation
• Deep structures like the retroperitoneal space become visible



By contrast, linear high-frequency probes typically max out at 5-7 cm depth. This works fine for vascular access but becomes insufficient for most abdominal structures.



2. They Provide a Wider Field of View



The fan-shaped beam from a curvilinear probe creates a field of view that expands with depth. This typically spans 60-70 degrees wide. This means:



• You can see more anatomy in a single view
• Relationships between adjacent structures are easier to appreciate
• Larger organs like the liver can be visualized more completely



This wider perspective reduces the number of probe adjustments needed. The result is more efficient and comprehensive exams.



3. They Maintain Better Contact with Curved Surfaces



The curved face of a curvilinear probe fits naturally against the convex surface of the abdomen. This improved contact:



• Reduces air gaps that disrupt sound transmission
• Minimizes the need to rock or angle the probe
• Creates more consistent image quality across the scan area



The importance of this anatomical match shouldn’t be underestimated.  Proper probe-to-skin contact is essential because ultrasound waves cannot travel through air; coupling gel eliminates air gaps and ensures accurate image transmission.



Common Training Challenges with Curvilinear Probes



Despite their advantages for abdominal imaging, curvilinear probes present several training challenges:



Challenge 1: Interpreting the Fan-Shaped Image



Unlike linear probes that create rectangular images, curvilinear probes produce images that widen with depth. This fan-shaped perspective requires trainees to:



• Mentally transform the 2D fan image into 3D anatomical understanding
• Recognize that structures at the image edges may be further apart than they appear
• Adjust to the converging appearance of parallel structures



Mastering this visual adjustment takes practice, but it’s a key step toward accurate interpretation. A 2023 study by Walsh et al. found that novices had 5.4% higher accuracy with curvilinear images than with phased array images—showing the unique learning curve and value of understanding fan-shaped views.



Challenge 2: Optimizing Technical Parameters



The deeper imaging of abdominal scans requires careful adjustment of:



• Depth settings. Too shallow misses deep structures. Too deep reduces resolution.
• Gain controls. Signal attenuation increases with depth, requiring compensation.
• Focal zones. Proper placement improves resolution at key depths.



Deeper imaging adds another layer of complexity. Abdominal ultrasound typically requires 8–10 cm depth in thin patients and up to 25–30 cm in obese patients to visualize key structures such as the aorta and liver. This range highlights why fine-tuning parameters like depth, gain, and focal zones is essential for clear, diagnostic images.



Challenge 3: Handling Technique Differences



Effective abdominal scanning requires specific handling techniques:



• Firmer pressure to displace bowel gas and improve contact
• Smooth, slower sweeping motions to capture complete organ views
• Respiratory coordination to visualize structures affected by breathing



These skills take time and guided repetition to develop. Educational guidelines and studies show that achieving basic competency in abdominal ultrasound scanning, especially with curvilinear probes, requires around 25–30 hours of supervised hands-on practice.



How Humimic SimuGel™ Improves Curvilinear Probe Training



Training effectively with curvilinear probes requires a medium that replicates human tissue acoustically while providing consistent, repeatable practice opportunities. This is where Humimic SimuGel™ makes a significant difference.



Humimic SimuGel™ is specifically engineered to mimic the acoustic properties of human tissue, creating ultrasound images that closely resemble clinical scans. The crystal-clear material provides ideal conditions for visualizing simulated structures at various depths.



SimuGel ultrasound phantoms offer several advantages specifically for curvilinear probe training:



• Consistent acoustic properties that allow sound waves to penetrate deeply like human tissue
• Customizable echogenicity of embedded structures to simulate different organ textures
• Durability through repeated scanning sessions without degradation
• Clear visualization of structures at the full range of depths curvilinear probes can reach



For curvilinear probe training, educators typically select:



• SimuGel 2 for general abdominal scanning practice that simulates muscle-like resistance
• SimuGel 3 for liver and organ parenchyma simulation with softer, more penetrable consistency
• SimuGel 4 for adipose-rich tissue scenarios that challenge imaging technique



Essential Scanning Techniques Using Curvilinear Probes



Each technique helps trainees build spatial awareness, interpret real-time images, and apply proper probe control. These fundamentals form the basis of accurate ultrasound scanning.



When training with SimuGel phantoms, instructors emphasize five core techniques that transfer directly to clinical practice:



1. Proper Coupling and Contact



Maintaining continuous contact between the curved probe surface and the scanning surface is critical. Trainees learn to:



• Apply adequate ultrasound gel to eliminate air interfaces
• Position the probe perpendicular to the surface initially
• Use gentle, even pressure to maintain contact across the curved face



2. Systematic Scanning Patterns



Efficient abdominal imaging follows organized patterns:



• Longitudinal sweeps from medial to lateral
• Transverse sweeps from superior to inferior
• Fan-like movements to survey larger structures



“The SimuGel’s clear consistency lets students see their probe position relative to embedded structures,” notes clinical instructor Jamie Roberts. “This visual feedback helps them connect hand movements to image changes.”



3. Depth Optimization



Setting appropriate depth is crucial for balancing penetration and frame rate:



• Set depth to visualize the deepest structure of interest plus 1-2 cm
• Avoid excessive depth that reduces frame rate unnecessarily
• Adjust depth as you move between shallow and deep targets



4. Gain Adjustment



Proper gain settings compensate for attenuation at different depths:



• Use time-gain compensation (TGC) to equalize brightness throughout the image
• Increase overall gain for deep structures or larger patients
• Reduce gain to minimize artifact in fluid-filled structures



5. Focal Zone Placement



Strategic focal zone positioning enhances resolution:



• Place the focal zone at or slightly below the structure of interest
• For deeper structures, position multiple focal zones at different depths
• Move focal zones as you shift between shallow and deep targets



Real-World Applications and Clinical Relevance

The skills developed through practice with curvilinear probes on SimuGel phantoms translate directly to a wide range of clinical scenarios:



Diagnostic Applications

• Comprehensive abdominal assessment of liver, gallbladder, pancreas, and spleen
• Renal evaluation including size, echogenicity, and collecting system
• Aortic and major vessel examination
• Pelvic organ assessment



Procedural Applications

• Ultrasound-guided paracentesis and ascites drainage
• Abdominal and renal biopsy guidance
• Abscess localization and drainage procedures
• FAST exams for trauma assessment



A recent study found that point-of-care ultrasound (POCUS) for suspected small bowel obstruction reduced median time to diagnosis from 217 minutes to 121 minutes compared to standard imaging workflows.



Reliable Results Start Here



Getting consistent results can be a challenge. We understand how unpredictable materials and tools can affect your work and slow down progress.



Humimic Medical is here to make things more reliable. Our solutions are designed to support professionals who need precision, consistency, and confidence in every task.



Contact us today to find a dependable partner for your next project.



Frequently Asked Questions



1. What frequency range is best for most adult abdominal scans with a curvilinear probe?



Most adult abdominal imaging is performed in the 3.5-5 MHz range. This provides an optimal balance between penetration and resolution for average adult tissue depth.



2. Can curvilinear probes be used for superficial structures?



Curvilinear probes are not optimal for superficial structures. Linear high-frequency probes (7-15 MHz) provide better resolution for structures less than 5 cm deep.



3. How does SimuGel compare to commercial ultrasound phantoms?



SimuGel offers comparable acoustic properties to commercial phantoms but with greater durability through thousands of scans. Unlike gelatin-based models that deteriorate over time, SimuGel maintains consistent performance through repeated use.



4. What makesSimuGelideal for ultrasound training?



SimuGel’s consistent density and acoustic properties closely mimic human tissue while allowing for visual verification of target structures. This combination creates an ideal learning environment that bridges demonstration and clinical practice.
